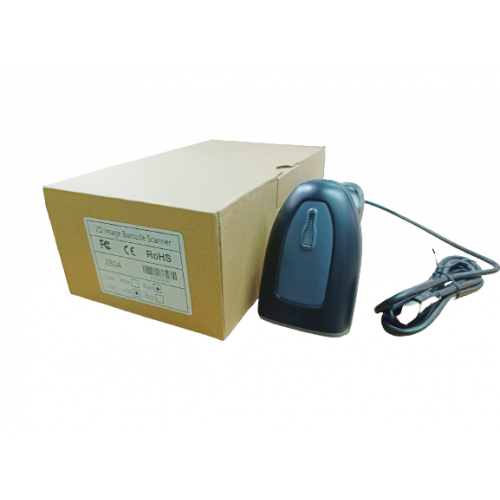

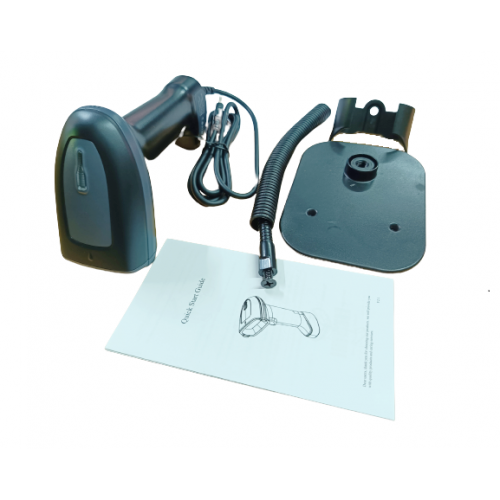

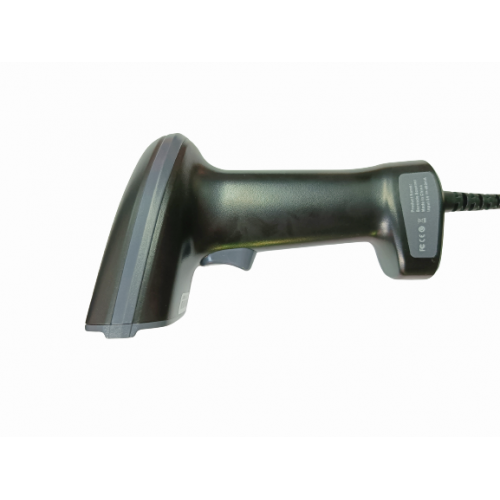

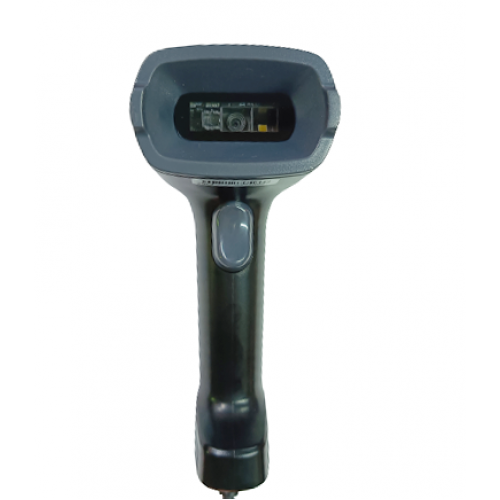

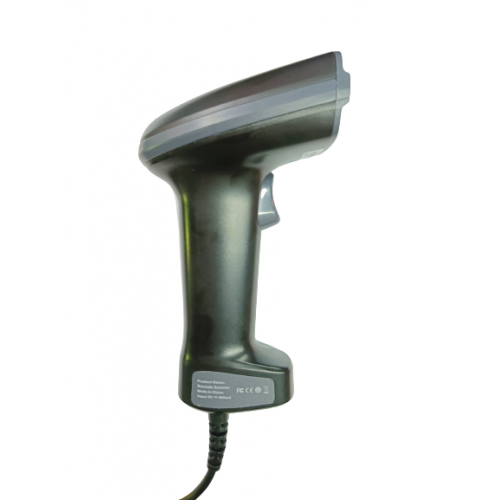

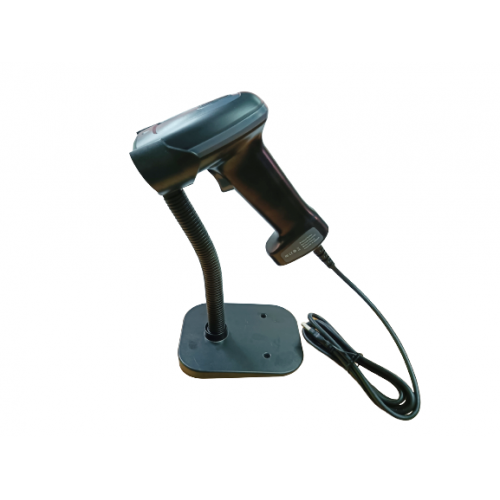

Barcode Scanner THREEBOY 2804 2D (Black)

Barcode Scanner THREEBOY 2804 2D (Black)
Barcode Scanner THREEBOY 2804 2D (Black) Barcode Scanner THREEBOY 2804 2D (Black) Barcode Scanner THREEBOY 2804 2D (Black) Barcode Scanner THREEBOY 2804 2D (Black) Barcode Scanner THREEBOY 2804 2D (Black) Barcode Scanner THREEBOY 2804 2D (Black) Barcode Scanner THREEBOY 2804 2D (Black) Barcode Scanner THREEBOY 2804 2D (Black)
รหัสสินค้า: A0151814
สถานะสินค้า: 8
ราคา: 5,300 บาท 2,115 บาท
ไม่รวมภาษี: 1,977 บาท

Barcode Scanner THREEBOY 2804 2D (Black)

Auto Language                                            Yes

Specifications   ThreeBoy 2804

Performance
Image Sensor            CMOS
Resolution   640 * 480,256 gray levels.
Interface   USB / USB COM Port Emulation
Symbologies
2D
  Australian Post, Aztec, BPO, Canada Post, Codabar, Codablok, DataMatrix, Dutch Post, Japan Post, Matrix 2 of 5, Maxicode, Micro PDF417, MSI Code, PDF417, Planet, Plessey Code, Postnet,  QR Code, RSS, Standard 25, Telepen, TLC39
1D
  Code 11, Code 39, Code 93, Code128/EAN128, UPC/EAN, UPC-A, UPC-E, Codabar,Interleaved 2 of 5, ISBN, GS1 Databar, ,etc
Reading accuracy   ? 4mil
Light Source LED         (630 nm ? 10 nm)
Light Intensity          300 LUX (130 mm )
Depth of Scan Field     Code 39 (5mil) : 50 mm - 120 mm.
    Code 39 (10mil) : 25 mm - 250 mm.
    UPC/EAN (13mil) : 20 mm - 320mm.
    Data Matrix (7.5mil) : 63 mm - 150 mm.
    PDF417 (6.6mil) : 62 mm - 145 mm.
Barcode Sensitivity   Tilt               ?45? @ 0?Roll and 0? Skew
    Rotation      ?30? @ 0?Pitch and 0? Skew
    Defection    ?45? @ 0?Roll and 0? Skew
Symbol contrast   ? 30% Reflectance difference
Roll                    360?
Yaw(Skew)              45?
Pitch                  45?
Illumination          0 ~ 100,000 LUX

Mechanical/ Electrical
Power Consumption     1.65W
Working Voltage    DC +5V +5%
Current :
Operating Current   300 mA
Standby Current     40 mA
Startup Current     60 mA

Environment
Operate Temperature  -20?C - +60?C
Storage Temperature  -30?C - +70?C
Operating Humidity    5% - 95% ( non-condensing )
Certificates   FCC Part15 Class B, CE EMC Class B
Colour Depth:    32 Bit
Interface Type:    SB, USB Emulation
Scan Speed:    100times/second
Color:    Gray
Weight              235g
